Trench Bucket

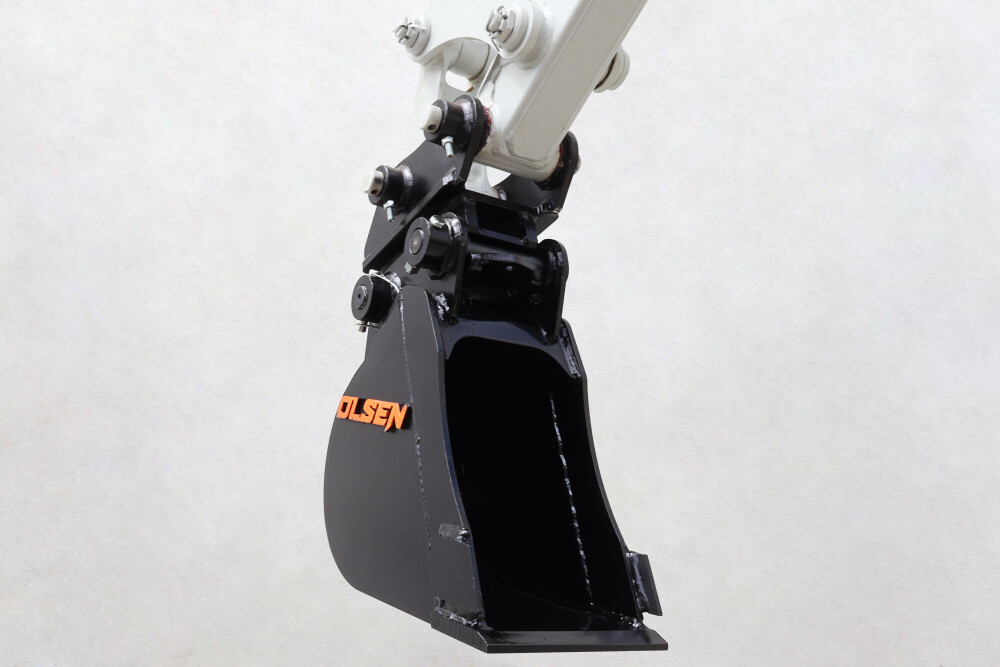

Dig Bucket no teeth 01

Trench Bucket

  • Pins are included as a standard to suit the intended excavator
  • Hard floor
  • Integrated side cutters
  • No teeth and replaceable teeth are available
  • 1-year warranty

*Scroll or swipe from left to right to view more options

Product code OADBNT-01-200 (NO TEETH) OADBNT-01-300 (NO TEETH) OADB-01-200 OADB-01-300 OADB-02-300 OADB-03-300 OADB-05-300 OADBNT-08-300 (NO TEETH) OADB-08-300
Tonnage 1-1.9 Ton 1-1.9 Ton 1-1.9 Ton 1-1.9 Ton 2-2.9 Ton 3-3.9 Ton 4-5.9 Ton 6-9.9 Ton 6-9.9 Ton
Overall width 200 mm 300 mm 200 mm 300 mm 300 mm 300mm 300 mm 300 mm 300 mm
Capacity (struck) 0.016 m3 0.025 m3 0.016 m3 0.025 m3 0.034 m3 0.034 m3 0.065 m3 0.080 m3 0.080 m3
Capacity (heaped) 0.018 m3 0.030 m3 0.018 m3 0.030 m3 0.042 m3 0.042 m3 0.080 m3 0.095 m3 0.095 m3
Weight 26 kg 32 kg 28 kg 34 kg 64 kg 66 kg 100 kg 122 kg 124 kg
Price $450 + GST $520 + GST $500 + GST $570 + GST $860 + GST $870 + GST $1,090 + GST $1,100 + GST $1,480 + GST

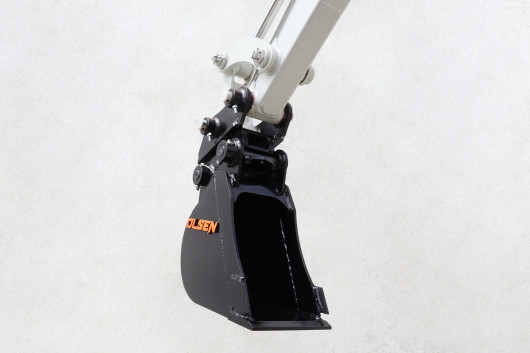

IMG 1028

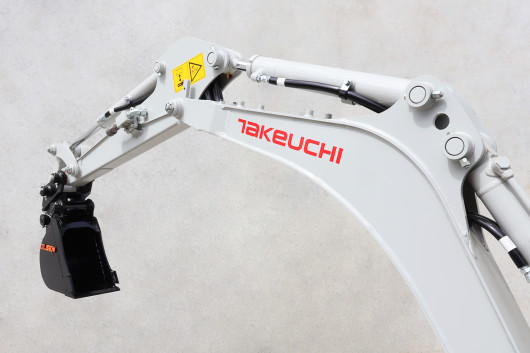

IMG 1040.JPG

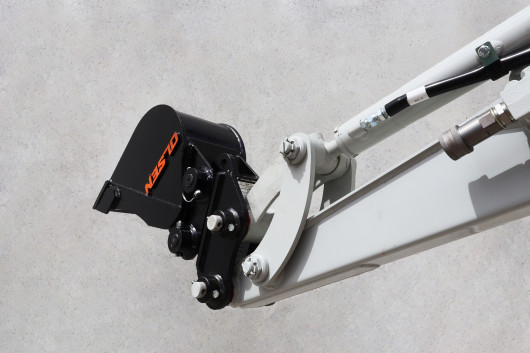

IMG 1043.JPG

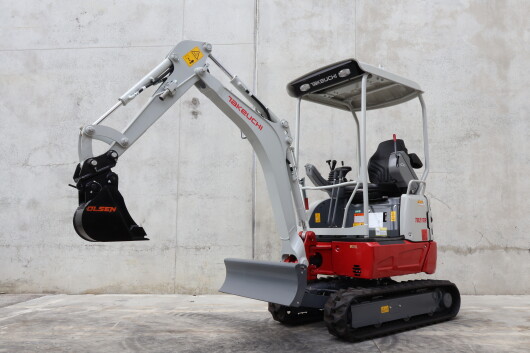

IMG 1061
